QR0492246N7R02

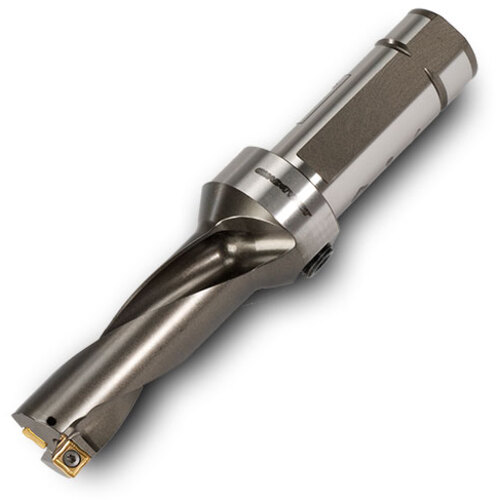

Indexable Insert Drill; 1.937″ Dia. × 9.69″ LU × 1-1/2″ Shank Dia. × 14.37″ OAL ; 5D ; Steel

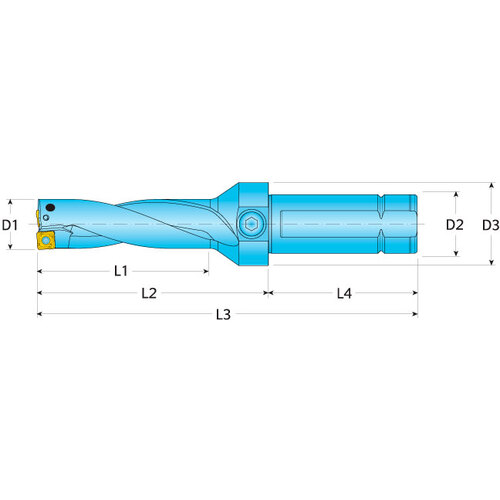

| Cutting Diameter (DC) | 1.937″ | Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 9.69″ | Flange Diameter (DF) | 2.362″ |
| Application | | Drill Mill | Drilling | | Point Length (PL) | 0.084″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Shank Size (SS) | 1″ | Length Group | 5D |
| Tool Type | Indexable Drill | Effective No. of Teeth | 1 |
| Shank Length (LS) | 3.16″ | Body Material | Steel |
| Functional Length (LF) | 11.22″ | Decimal Equivalent | 1.937″ |
| Overall Length (OAL) | 14.37″ |
Product Features
| Family Description | Extended Length Shank For Maximum Clamping Surface Ideal For Lathe Applications Note: Brass coolant fitting should be ordered separately | Country of Origin | S.Korea |
Shipping Info
Additional Fees and Notes
0
Package Weight
3.196
