HSKA63MAXIN32X113BIN

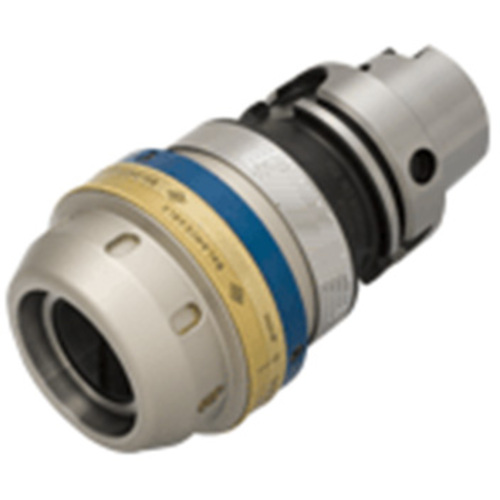

TungMax Balancable endmill chuck holders with HSK-A shank

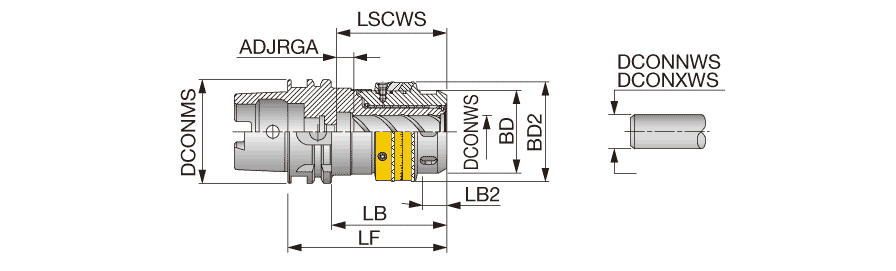

| Connection Diameter Machine Side (DCONMS) | 63 mm | Application | | Face contact interface | |
| Body Diameter (BD) | 69 mm | Shank Size (SS) | 63. |
| Body Length (LB) | 87 mm | Tool Type | HSK |
| Overall Length (OAL) | 113 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 6 mm |
| Connection Diameter Workpiece Side (DCONWS) | 32 mm | Measurement Type | Metric |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 32 mm | Body Material | Steel |
Product Features
| Family Description | TungMax Balancable endmill chuck holders with HSK-A shank | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.000
