GD-DHL 0.591-64.96-U04

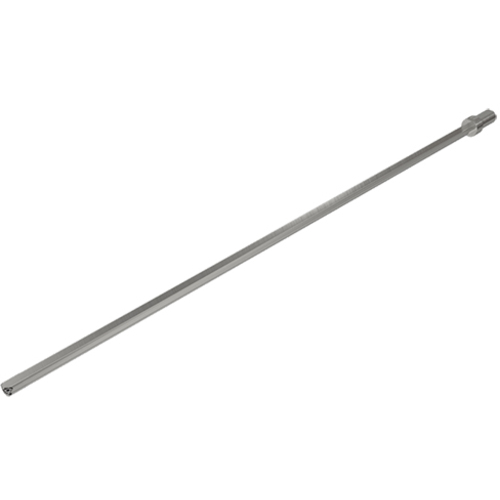

Gundrills carrying the TOGT indexable inserts, with 3 chip splitting cutting edges and a wiper for high hole surface quality and high feed.

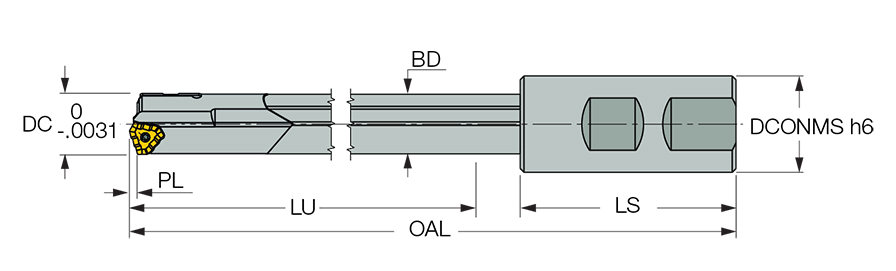

| Cutting Diameter (DC) | 0.591″ | Overall Length (OAL) | 65.039″ |
| Usable Length (LU) | 61.3779″ | Measurement Type | Inch |
| Application | | Gundrills | | Master Insert Identification (MIID) | TOGT 0703.. |
| Connection Diameter Machine Side (DCONMS) | 1″ | Body Material | Steel |
| Tool Type | Deep Hole / Gun Drill | Decimal Equivalent | 0.591″ |
| Shank Length (LS) | 2.756″ |
Product Features
| Family Description | Gundrills carrying the TOGT indexable inserts, with 3 chip splitting cutting edges and a wiper for high hole surface quality and high feed. | Country of Origin | Japan |
| Remarks | For inquiry form, pad and driver selection, click on More Info Note: Gundrills can be supplied with up to 95 length on request. Inserts and guide pads to be ordered separately (not included with the tools). Preventative measures: Do NOT operate the deep hole drill at full speed before engaging the guide hole. Enter the guide hole slowly at a speed of 50 - 100 rpm. |
Shipping Info
Additional Fees and Notes
0
Package Weight
4.012
