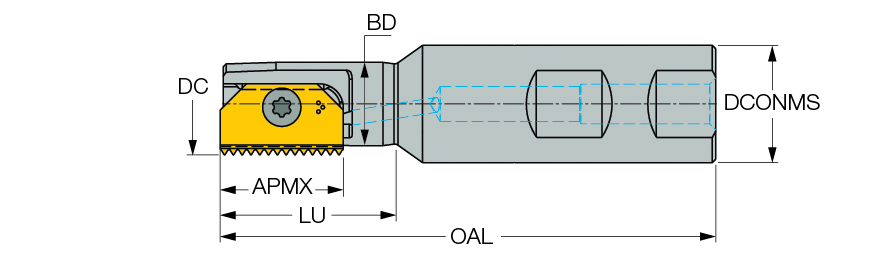

| Cutting Diameter (DC) | 21 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Position | External |
| Depth of Cut Maximum (APMX) | 21 mm | Tool Type | Indexable thread mills |
| Overall Length (OAL) | 94 mm | Measurement Type | Metric |
| Flute Count (NOF) | 1 | Grade | 3102179 |
| Shank Type | Weldon | Connection Code Machine Side (CCMS) | Weldon |
| Body Material | Steel | Body Diameter (BD) | 15.9 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Indexable threading endmills with Weldon shank and coolant holes. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info. All endmills are equipped with a bore for internal coolant Tool cutting diameter should not exceed 2/3 of thread bore diameter |
